A02_Boris_3Drtz Test

中文 English

测试目标

本页说明 tests/002_pusher/A02_Boris_3Drtz 中的参考测试。该测试调用 sub_A02_Boris_3Drtz_push_v_x(x, v, E, B, k, dt)，检查非相对论柱坐标 (r,\theta,z) Boris 推进器（同时更新位置和速度）在与 A01 对应的 四个均匀场算例下的轨道、速度和解析参考解的一致性。

跟 A01 的关键差异

• 接口：A02 是 (x, v, E, B, k, dt)——子程序内部完成位置更新， 不需要调用方再做 r = r + v*dt。

• 坐标系：位置 x = (r, \theta, z)，速度 v = (v_r, v_\theta, v_z)， 电磁场 E、B 也按柱坐标分量传入。

• 初值位移：四个 case 都把粒子的初始 Cartesian 位置从原点平移到 (x_0, 0, 0)，其中 x_0 = 1.0，以避开 r = 0 奇点。

• case 1 初始速度调整：A02 case 1 用 v_init = (0, v_0, 0) Cartesian （A01 用 (v_0, 0, 0)），让回旋圆心位于 +x 方向，整个轨道 r 始终大于 x_0。

• 每步重算 cylindrical 场：均匀 Cartesian 场 E_x = E_0 在柱坐标里随 \theta 旋转，每步从 Cartesian 输入按 E_r = E_0 \cos\theta、E_\phi = -E_0 \sin\theta 重算。

程序结构

• source_f90/main.f90 设置参数并依次运行四个 case。

• source_f90/sub_case*.f90 给出每个物理算例、解析参考解和误差输出； 模拟值从柱坐标 (r, \theta, z, v_r, v_\theta, v_z) 转换回 Cartesian (x, y, z, v_x, v_y, v_z) 后再跟 A01 同款的 Cartesian 解析解比较。

• source_py/plot_savefig.py 读取 build/*.dat，打印最大误差并保存图片 （与 A01 同款，因为输出列格式一致）。

• make.sh 使用 gfortran -cpp -O3 -fdefault-real-8 编译测试程序。

运行方式

cd tests/002_pusher/A02_Boris_3Drtz
bash clean.sh && bash make.sh && bash run.sh && bash plot.sh

run.sh 会生成 build/case*.dat；plot.sh 会生成 figs_cases/*.png。 文档中的静态图是从一次参考运行复制到 docs/source/images/tests/002_pusher 的结果。

输出字段

每个 .dat 文件的列与 A01 完全一致： step, t, x, y, z, vx, vy, vz, v2，随后是解析位置和解析速度， 最后两列为 err_v = |v - v_ana| 和 err_r = |r - r_ana|。 注意这里的 (x, y, z, vx, vy, vz) 是 柱坐标模拟值转回 Cartesian 后的结果， 方便直接跟 A01 的解析解逐分量比对。

测试算例

Case	设置（Cartesian）	主要检查
case01_gyro	E = 0，B 沿 z，v_{init} = (0, v_0, 0)	偏移圆心的回旋轨道和 v^2 守恒。
case02_Eonly	只有均匀电场 E = (E_x, 0, 0)，v_{init} = 0	沿 +x 的匀加速解析解，\theta 全程为 0。
case03_ExB	均匀 E = (E_x, 0, 0)、B = (0, 0, B_0)，带初速	回旋运动叠加 \(E \times B\) drift；\theta 随轨迹变化。
case04_ExB_drift	选择初速 (0, -E_x/B_0, 0) 消去回旋分量	纯 \(E \times B\) drift；\theta 单调向 -\pi/2 趋近。

参考结果

与 A01 在同样的物理参数下对比，A02 给出几乎相同量级的逐 case 误差：

Case	A01 max |v - v_{ana}|	A02 max |v - v_{ana}|	A01 max |r - r_{ana}|	A02 max |r - r_{ana}|
gyro	3.83e-7	9.66e-7	1.00e+5	1.00e+5
Eonly	2.19e-13	2.19e-13	4.00e-3	4.00e-3
ExB	6.00e-7	6.00e-7	8.60e-4	8.60e-4
drift	6.00e-7	6.00e-7	1.25e-6	1.25e-6

位置误差 逐 case 完全一致，验证柱坐标 Boris 在物理上等价于 Cartesian Boris。 case 1 的速度误差略大（cos/sin/sqrt/atan2 引入的额外舍入），其余三个 case 完全相同。

参考图

case01_gyro 的 x-y 轨道（柱坐标模拟值转回 Cartesian 后）， 数值轨道应跟随解析回旋轨道。

case01_gyro 的 v^2 随时间变化，用于观察磁场旋转步的速度模保持情况。

case02_Eonly 的 x(t)，\theta 全程为 0，曲线退化成 1D 匀加速。

case03_ExB 的 x-y 轨道，柱坐标 Boris 仍能正确给出回旋 + drift 的摆线轨迹。

case04_ExB_drift 的 x-y 轨道，沿 -y 方向匀速漂移， 无回旋分量。

参考文献

[1] J.P. Boris, Relativistic plasma simulation-optimization of a hybrid code, in: Proceedings of the Fourth Conference on Numerical Simulation of Plasmas, Naval Research Laboratory, Washington, D.C., 1970, pp.3-67.

[2] G.L. Delzanno, E. Camporeale, On particle movers in cylindrical geometry for Particle-In-Cell simulations, Journal of Computational Physics, 253 (2013) 259-277. DOI: 10.1016/j.jcp.2013.07.007

Test Goal

This page documents the reference test under tests/002_pusher/A02_Boris_3Drtz. The test calls sub_A02_Boris_3Drtz_push_v_x(x, v, E, B, k, dt) and checks the non-relativistic cylindrical (r,\theta,z) Boris pusher (which advances both position and velocity in one call) against analytic reference motion in the same four uniform-field cases as A01.

Key Differences from A01

• Interface: A02 takes (x, v, E, B, k, dt). The subroutine performs the position update internally; the caller does not append r = r + v*dt.

• Coordinates: position x = (r, \theta, z) and velocity v = (v_r, v_\theta, v_z); the E and B inputs are also in cylindrical components.

• Initial offset: all four cases shift the Cartesian starting position from the origin to (x_0, 0, 0) with x_0 = 1.0 to avoid the r = 0 singularity.

• Case 1 initial velocity: A02 case 1 uses Cartesian v_{init} = (0, v_0, 0) (A01 uses (v_0, 0, 0)) so the gyro center sits on the +x side and the orbit always satisfies r \ge x_0.

• Per-step field conversion: a uniform Cartesian E_x = E_0 field has \theta-dependent cylindrical components, recomputed each step as E_r = E_0 \cos\theta, E_\phi = -E_0 \sin\theta.

Program Structure

• source_f90/main.f90 sets the parameters and runs the four cases.

• source_f90/sub_case*.f90 defines each case and the analytic reference solution; simulated cylindrical state is converted back to Cartesian (x, y, z, v_x, v_y, v_z) before being compared to the same Cartesian analytic solution used in A01.

• source_py/plot_savefig.py reads build/*.dat, prints maximum errors, and saves figures (identical to A01 because the column format matches).

• make.sh compiles the test with gfortran -cpp -O3 -fdefault-real-8.

Run Command

cd tests/002_pusher/A02_Boris_3Drtz
bash clean.sh && bash make.sh && bash run.sh && bash plot.sh

run.sh writes build/case*.dat. plot.sh writes figs_cases/*.png. The static figures below are copied from one reference run into docs/source/images/tests/002_pusher.

Output Fields

Each .dat file uses the same columns as A01: step, t, x, y, z, vx, vy, vz, v2, followed by analytic position and velocity columns, with the final two columns being err_v = |v - v_{ana}| and err_r = |r - r_{ana}|. Note that (x, y, z, vx, vy, vz) are the simulated cylindrical state converted back to Cartesian so they can be directly compared with the same Cartesian analytic solutions used in A01.

Test Cases

Case	Setup (Cartesian)	Main check
case01_gyro	E = 0, B along z, v_{init} = (0, v_0, 0)	Gyro orbit (with offset center) and v^2 conservation.
case02_Eonly	Uniform E = (E_x, 0, 0), v_{init} = 0	Constant-acceleration along +x; \theta stays at 0.
case03_ExB	Uniform E = (E_x, 0, 0), B = (0, 0, B_0), with initial velocity	Gyro motion plus \(E \times B\) drift; \theta varies along the trajectory.
case04_ExB_drift	Initial velocity (0, -E_x/B_0, 0) chosen to remove the gyro component	Pure \(E \times B\) drift; \theta approaches -\pi/2.

Reference Results

Run under the same physical parameters as A01, A02 produces case-by-case errors of essentially the same magnitude:

Case	A01 max |v - v_{ana}|	A02 max |v - v_{ana}|	A01 max |r - r_{ana}|	A02 max |r - r_{ana}|
gyro	3.83e-7	9.66e-7	1.00e+5	1.00e+5
Eonly	2.19e-13	2.19e-13	4.00e-3	4.00e-3
ExB	6.00e-7	6.00e-7	8.60e-4	8.60e-4
drift	6.00e-7	6.00e-7	1.25e-6	1.25e-6

Position errors are identical case-by-case, confirming that the cylindrical Boris is physically equivalent to the Cartesian one. The slightly larger velocity error in case 1 reflects extra rounding from cos/sin/sqrt/atan2; the other three cases match exactly.

Reference Figures

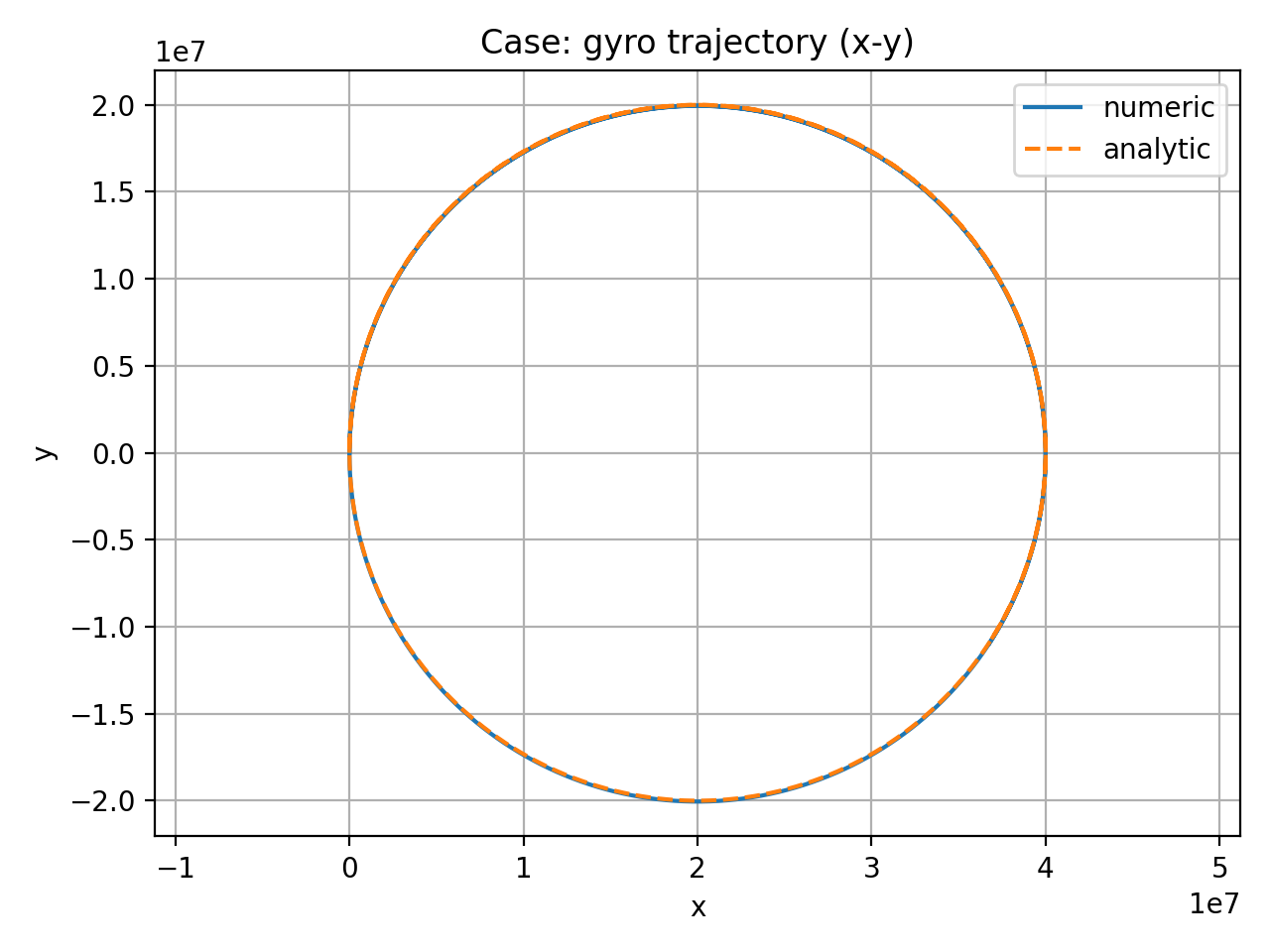

case01_gyro trajectory in the x-y plane (cylindrical simulation converted back to Cartesian) tracking the analytic gyro orbit.

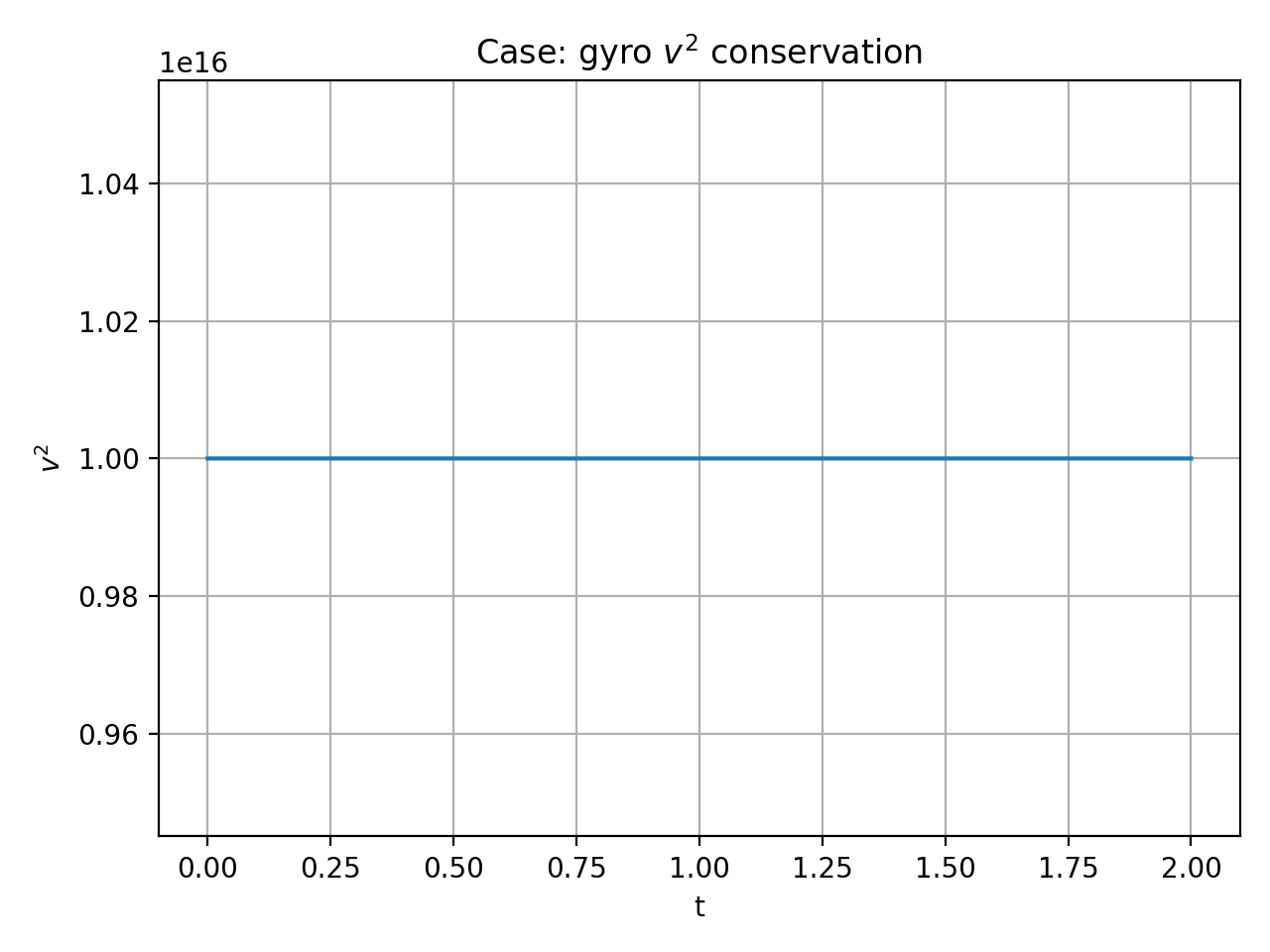

case01_gyro time history of v^2.

case02_Eonly comparison of x(t) with the electric-only analytic solution. \theta stays at 0, so the trajectory is effectively 1D.

case03_ExB trajectory showing the cylindrical Boris correctly reproducing the gyro + \(E \times B\) cycloid.

case04_ExB_drift trajectory drifting uniformly in -y with no gyro component.

References

[1] J.P. Boris, Relativistic plasma simulation-optimization of a hybrid code, in: Proceedings of the Fourth Conference on Numerical Simulation of Plasmas, Naval Research Laboratory, Washington, D.C., 1970, pp.3-67.

[2] G.L. Delzanno, E. Camporeale, On particle movers in cylindrical geometry for Particle-In-Cell simulations, Journal of Computational Physics, 253 (2013) 259-277. DOI: 10.1016/j.jcp.2013.07.007
